Baja Karbon Lurus Siku Tee Jenis Gigitan Metrik Perlengkapan Tabung Hidrolik
Fitting pipa hidrolik tipe gigitan metrik, juga disebut fitting pipa metrik dengan sudut 24°, memenuhi standar metrik 2353. Fitting ini paling sering ditemukan dalam aplikasi hidrolik dan pneumatik pada peralatan konstruksi, minyak dan gas, otomotif, kedirgantaraan, pembuatan kapal, dan peralatan industri.
Salah satu keunggulannya adalah ukurannya yang kecil, sehingga cocok digunakan di area terbatas dan mengurangi dimensi total sistem hidrolik. Sistem ini juga mudah dirakit dan dibongkar, serta memiliki ketahanan getaran yang tinggi.
Uraian Teknis
Sambungan pipa tipe gigitan metrik dibuat dengan cincin gigitan yang, ketika dikencangkan, akan menggigit bagian luar pipa untuk menghasilkan sambungan yang kokoh dan kedap air. Badan, cincin pemotong (ferrule), dan mur merupakan tiga bagian yang menyusun sambungan ini.
Sambungan pipa tipe gigitan metrik terbuat dari baja karbon dan baja tahan karat, dengan ukuran diameter luar metrik berkisar antara 6 mm hingga 38 mm. Sambungan pipa-ke-pipa, pipa-ke-port betina, dan pipa-ke-port jantan adalah tiga jenis konektor ujung port pipa.
NJ menawarkan berbagai adaptor tipe gigitan metrik dalam berbagai bentuk & jenis penyegelan, dan jenis konversi dengan ulir Amerika dan Inggris seperti di bawah ini:
Lurus: union dan reducer, male ke male, male ke female, female ke female
Di samping alat penyambung pipa tipe gigitan metrik male ke male, kami juga menawarkan tipe gigitan metrik ke bspp dengan adaptor o-ring dan cincin penahan (1CG/1DG), tipe gigitan metrik ke bspp dengan cincin ed (1CB-WD/1DB-WD), tipe gigitan metrik ke o-ring metrik dan cincin penahan (1CH/1DH), jic male ke tipe gigitan metrik (1JC/1JD), tipe gigitan metrik ke kerucut metrik 60° (1CM/1DM), tipe gigitan metrik ke npt male (1CN/1DN), tipe gigitan metrik ke orb male (1CO/1DO), tipe gigitan metrik ke bspt male (1CT/1DT).
serikat atau peredam

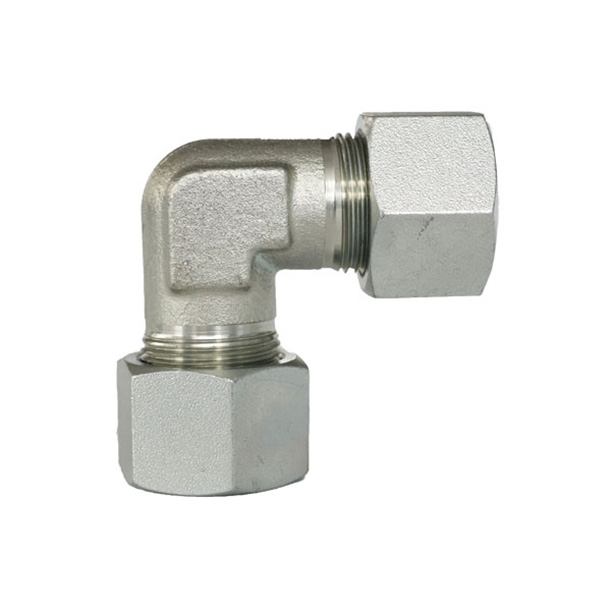

90 siku

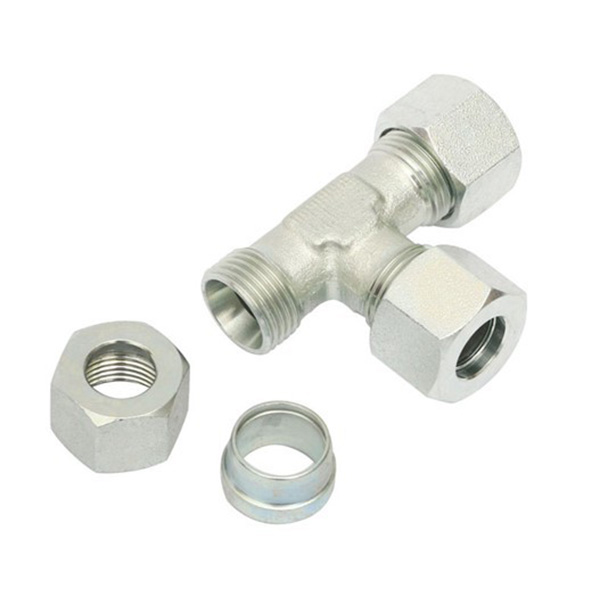

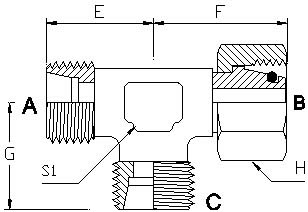

cabang tee dan tee lariData teknis

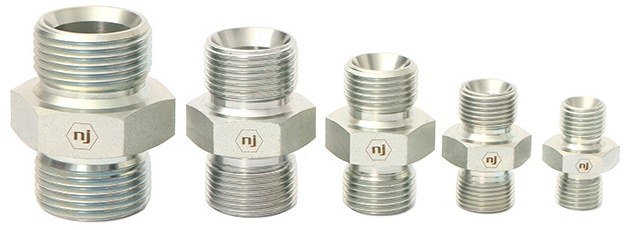

1C/1D - UNION JENIS GIGITAN METRIK JANTAN KE JANTAN
| Benang A | Benang B | Tidak ada bagian | L | E | H1 | ||
| Dash | Metrik DKL | Dash | Metrik DKL | mm | mm | mm | |
| -08LL | M08x1.0 (04LL) | -08LL | M08x1.0 (04LL) | 1C-08LL | 20 | 12 | 9 |
| -10LL | M10x1.0 (06LL) | -10LL | M10x1.0 (06LL) | 1C-10LL | 20 | 9 | 11 |
| -12LL | M12x1.0 (08LL) | -12LL | M12x1.0 (08LL) | 1C-12LL | 23 | 12 | 12 |
| -12 | M12x1.5 (06L) | -12 | M12x1.5 (06L) | 1C-12 | 24 | 10 | 12 |
| -14 | M14x1.5 (08L) | -14 | M14x1.5 (08L) | 1C-14 | 25 | 11 | 14 |
| -16 | M16x1.5 (10L) | -16 | M16x1.5 (10L) | 1C-16 | 27 | 13 | 17 |
| -18 | M18x1.5 (12L) | -18 | M18x1.5 (12L) | 1C-18 | 28 | 14 | 19 |
| -22 | M22x1.5 (15L) | -22 | M22x1.5 (15L) | 1C-22 | 30 | 16 | 24 |
| -26 | M26x1.5 (18L) | -26 | M26x1.5 (18L) | 1C-26 | 31 | 16 | 27 |
| -30 | M30x2 (22L) | -30 | M30x2 (22L) | 1C-30 | 35 | 20 | 32 |
| -36 | M36x2 (28L) | -36 | M36x2 (28L) | 1C-36 | 36 | 21 | 41 |
| -45 | M45x2 (35L) | -45 | M45x2 (35L) | 1C-45 | 41 | 20 | 46 |
| -52 | M52X2 (42L) | -52 | M52X2 (42L) | 1C-52 | 43 | 21 | 55 |
| -14 | M14x1.5 (08L) | -12 | M12x1.5 (06L) | 1C-1412 | 25 | 11 | 14 |
| -16 | M16x1.5 (10L) | -12 | M12x1.5 (06L) | 1C-1612 | 26 | 12 | 17 |
| -16 | M16x1.5 (10L) | -14 | M14x1.5 (08L) | 1C-1614 | 26 | 12 | 17 |
| -18 | M18x1.5 (12L) | -12 | M12x1.5 (06L) | 1C-1812 | 27 | 13 | 19 |
| -18 | M18x1.5 (12L) | -14 | M14x1.5 (08L) | 1C-1814 | 27 | 13 | 19 |
| -18 | M18x1.5 (12L) | -16 | M16x1.5 (10L) | 1C-1816 | 28 | 14 | 19 |
| -22 | M22x1.5 (15L) | -16 | M16x1.5 (10L) | 1C-2216 | 29 | 15 | 24 |
| -22 | M22x1.5 (15L) | -18 | M18x1.5 (12L) | 1C-2218 | 29 | 15 | 24 |
| -26 | M26x1.5 (18L) | -18 | M18x1.5 (12L) | 1C-2618 | 30 | 16 | 27 |
| -26 | M26x1.5 (18L) | -22 | M22x1.5 (15L) | 1C-2622 | 31 | 17 | 27 |
| -30 | M30x2 (22L) | -22 | M22x1.5 (15L) | 1C-3022 | 33 | 19 | 32 |
| -30 | M30x2 (22L) | -26 | M26x1.5 (18L) | 1C-3026 | 33 | 19 | 32 |
| -36 | M36x2 (28L) | -26 | M26x1.5 (18L) | 1C-3626 | 34 | 19 | 41 |
| -36 | M36x2 (28L) | -30 | M30x2 (22L) | 1C-3630 | 36 | 21 | 41 |
| -45 | M45x2 (35L) | -30 | M30x2 (22L) | 1C-4530 | 39 | 21 | 46 |
1CG/1DG - METRIC BITE TYPE X BSPP MALE STRAIGHT
| Benang A | Benang B | Tidak ada bagian | L | L1 | F | H1 | ||
| Dash | DKK | Dash | BSPP | mm | mm | mm | mm | |
| -8 | M08x1.0(04LL) | -2 | Ukuran G1/8X28 | 1CG-0802LL | 24 | 18 | 8 | 14 |
| -10 | M10x1.0(06LL) | -2 | Ukuran G1/8X28 | 1CG-1002LL | 24 | 18 | 8 | 14 |
| -12 | M12x1.0(08LL) | -2 | Ukuran G1/8X28 | 1CG-1202LL | 24 | 18 | 8 | 14 |
| -12 | M12x1.5 (06L) | -2 | Ukuran G1/8X28 | 1CG-1202 | 25 | 18 | 8 | 14 |
| -12 | M12x1.5 (06L) | -4 | Ukuran G1/4X19 | 1CG-1204 | 30 | 23 | 12 | 19 |
| -12 | M12x1.5 (06L) | -6 | Ukuran G3/8X19 | 1CG-1206 | 31 | 24 | 12 | 22 |
| -14 | M14x1.5 (08L) | -2 | G1 / 8-28 | 1CG-1402 | 25 | 18 | 8 | 17 |
| -14 | M14x1.5 (08L) | -4 | Ukuran G1/4X19 | 1CG-1404 | 30 | 23 | 12 | 19 |
| -14 | M14x1.5 (08L) | -6 | Ukuran G3/8X19 | 1CG-1406 | 31 | 24 | 12 | 22 |
| -14 | M14x1.5 (08L) | -8 | Ukuran G1/2X14 | 1CG-1408 | 34 | 27 | 14 | 27 |
| -16 | M16x1.5 (10L) | -2 | Ukuran G1/8X28 | 1CG-1602 | 27 | 20 | 8 | 17 |
| -16 | M16x1.5 (10L) | -4 | Ukuran G1/4X19 | 1CG-1604 | 31 | 24 | 12 | 19 |
| -16 | M16x1.5 (10L) | -6 | Ukuran G3/8X19 | 1CG-1606 | 32 | 25 | 12 | 22 |
| -16 | M16x1.5 (10L) | -8 | Ukuran G1/2X14 | 1CG-1608 | 35 | 28 | 14 | 27 |
| -18 | M18x1.5 (12L) | -4 | Ukuran G1/4X19 | 1CG-1804 | 31 | 24 | 12 | 22 |
| -18 | M18x1.5 (12L) | -6 | Ukuran G3/8X19 | 1CG-1806 | 34 | 27 | 12 | 22 |
| -18 | M18x1.5 (12L) | -8 | Ukuran G1/2X14 | 1CG-1808 | 37 | 30 | 14 | 27 |
| -22 | M22x1.5 (15L) | -4 | Ukuran G1/4X19 | 1CG-2204 | 33 | 26 | 12 | 24 |
| -22 | M22x1.5 (15L) | -6 | Ukuran G3/8X19 | 1CG-2206 | 33 | 26 | 12 | 24 |
| -22 | M22x1.5 (15L) | -8 | Ukuran G1/2X14 | 1CG-2208 | 38 | 31 | 14 | 27 |
| -22 | M22x1.5 (15L) | -12 | Ukuran G3/4X14 | 1CG-2212 | 40 | 33 | 16 | 32 |
| -26 | M26x1.5 (18L) | -8 | Ukuran G1/2X14 | 1CG-2608 | 36 | 29 | 14 | 27 |
| -26 | M26x1.5 (18L) | -12 | Ukuran G3/4X14 | 1CG-2612 | 39 | 32 | 16 | 32 |
| -30 | M30x2 (22L) | -8 | Ukuran G1/2X14 | 1CG-3008 | 39 | 32 | 14 | 32 |
| -30 | M30x2 (22L) | -12 | Ukuran G3/4X14 | 1CG-3012 | 41 | 34 | 16 | 32 |
| -30 | M30x2 (22L) | -16 | G1X11 | 1CG-3016 | 46 | 38 | 18 | 41 |
| -30 | M30x2 (22L) | -20 | Ukuran G1.1/4X11 | 1CG-3020 | 48 | 41 | 20 | 50 |
| -36 | M36x2 (28L) | -12 | Ukuran G3/4X14 | 1CG-3612 | 45 | 37 | 16 | 38 |
| -36 | M36x2 (28L) | -16 | G1X11 | 1CG-3616 | 46 | 38 | 18 | 41 |
| -36 | M36x2 (28L) | -20 | Ukuran G1.1/4X11 | 1CG-3620 | 48 | 41 | 20 | 50 |
| -45 | M45x2 (35L) | -16 | G1X11 | 1CG-4516 | 48 | 41 | 18 | 50 |
| -45 | M45x2 (35L) | -20 | Ukuran G1.1/4X11 | 1CG-4520 | 48 | 38 | 20 | 50 |
| -45 | M45x2 (35L) | -24 | Ukuran G1.1/2X11 | 1CG-4524 | 52 | 41 | 22 | 55 |
| -52 | M52x2 (42L) | -20 | Ukuran G1.1/4X11 | 1CG-5220 | 50 | 39 | 20 | 55 |
| -52 | M52x2 (42L) | -24 | Ukuran G1.1/2X11 | 1CG-5224 | 52 | 41 | 22 | 55 |
| -52 | M52x2 (42L) | -32 | G2-11 | 1CG-5232 | 22 | 70 | ||
1JC/1JD - JIC MALE X METRIC BITE TYPE STRAIGHT
| Benang A | Benang B | Tidak ada bagian | L | E | F | H | ||
| Dash | JIC | Dash | DKK | mm | mm | mm | mm | |
| -7 | 7 / 16-20 | -12 | M12x1.5 | 1JC-0712 | 31 | 14 | 10 | 14 |
| -7 | 7 / 16-20 | -14 | M14x1.5 | 1JC-0714 | 30 | 14 | 10 | 16 |
| -7 | 7 / 16-20 | -16 | M16x1.5 | 1JC-0716 | 31 | 14 | 11 | 17 |
| -9 | 9 / 16-18 | -12 | M12x1.5 | 1JC-0912 | 31 | 14 | 10 | 17 |
| -9 | 9 / 16-18 | -14 | M14x1.5 | 1JC-0914 | 31 | 14 | 10 | 17 |
| -9 | 9 / 16-18 | -16 | M16x1.5 | 1JC-0916 | 31 | 14 | 11 | 17 |
| -9 | 9 / 16-18 | -18 | M18x1.5 | 1JC-0918 | 32 | 14 | 11 | 19 |
| -9 | 9 / 16-18 | -22 | M22x1.5 | 1JC-0922 | 35 | 14 | 12 | 24 |
| -12 | 3 / 4-16 | -14 | M14x1.5 | 1JC-1214 | 34 | 17 | 10 | 22 |
| -12 | 3 / 4-16 | -16 | M16x1.5 | 1JC-1216 | 35 | 17 | 11 | 22 |
| -12 | 3 / 4-16 | -18 | M18x1.5 | 1JC-1218 | 35 | 17 | 11 | 22 |
| -12 | 3 / 4-16 | -22 | M22x1.5 | 1JC-1222 | 38 | 17 | 12 | 24 |
| -14 | 7 / 8-14 | -18 | M18x1.5 | 1JC-1418 | 40 | 19 | 11 | 24 |
| -14 | 7 / 8-14 | -22 | M22x1.5 | 1JC-1422 | 41 | 19 | 12 | 24 |
| -14 | 7 / 8-14 | -26 | M26x1.5 | 1JC-1426 | 42 | 19 | 12 | 27 |
| -17 | 1.1 / 16-12 | -18 | M18x1.5 | 1JC-1718 | 42 | 22 | 11 | 30 |
| -17 | 1.1 / 16-12 | -22 | M22x1.5 | 1JC-1722 | 43 | 22 | 12 | 30 |
| -17 | 1.1 / 16-12 | -26 | M26x1.5 | 1JC-1726 | 43 | 22 | 12 | 30 |
| -17 | 1.1 / 16-12 | -30 | M30x2.0 | 1JC-1730 | 47 | 22 | 14 | 32 |
| -21 | 1.5 / 16-12 | -36 | M36x2.0 | 1JC-2136 | 48 | 23 | 14 | 41 |
| -26 | 1.5 / 8-12 | -45 | M45x2.0 | 1JC-2645 | 53 | 24 | 16 | 46 |
| -30 | 1.7 / 8-12 | -52 | M52x2.0 | 1JC-3052 | 58 | 27 | 16 | 60 |

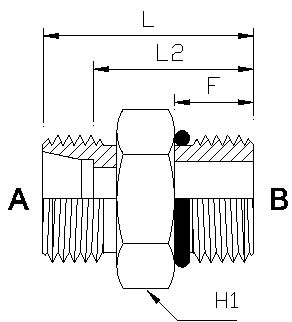

1CN/1DN - METRIC BITE TYPE X NPT MALE LURUS
| Benang A | Benang B | Tidak ada bagian | L | L2 | F | H1 | ||
| Dash | DKK | Dash | NPT | mm | mm | mm | mm | |
| -12 | M12x1.5 (06L) | -2 | 1 / 8x27 | 1CN-1202 | 24 | 17 | 10 | 12 |
| -12 | M12x1.5 (06L) | -4 | 1 / 4x18 | 1CN-1204 | 30 | 23 | 15 | 17 |
| -14 | M14x1.5 (08L) | -4 | 1 / 4x18 | 1CN-1404 | 30 | 23 | 15 | 17 |
| -14 | M14x1.5 (08L) | -6 | 3 / 8x18 | 1CN-1406 | 30 | 23 | 15 | 19 |
| -16 | M16x1.5 (10L) | -2 | 1 / 8x27 | 1CN-1602 | 25 | 18 | 10 | 17 |
| -16 | M16x1.5 (10L) | -4 | 1 / 4x18 | 1CN-1604 | 31 | 24 | 15 | 17 |
| -16 | M16x1.5 (10L) | -6 | 3 / 8x18 | 1CN-1606 | 32 | 25 | 15 | 19 |
| -18 | M18x1.5 (12L) | -4 | 1 / 4x18 | 1CN-1804 | 32 | 25 | 15 | 19 |
| -18 | M18x1.5 (12L) | -6 | 3 / 8x18 | 1CN-1806 | 32 | 25 | 15 | 19 |
| -18 | M18x1.5 (12L) | -8 | 1 / 2x14 | 1CN-1808 | 37 | 30 | 20 | 22 |
| -22 | M22x1.5 (15L) | -6 | 3 / 8x18 | 1CN-2206 | 33 | 26 | 15 | 24 |
| -22 | M22x1.5 (15L) | -8 | 1 / 2x14 | 1CN-2208 | 38 | 31 | 20 | 24 |
| -26 | M26x1.5 (18L) | -6 | 3 / 8x18 | 1CN-2606 | 34 | 27 | 15 | 27 |
| -26 | M26x1.5 (18L) | -8 | 1 / 2x14 | 1CN-2608 | 39 | 32 | 20 | 27 |
| -26 | M26x1.5 (18L) | -12 | 3 / 4x14 | 1CN-2612 | 39 | 32 | 20 | 30 |
| -30 | M30x2 (22L) | -8 | 1 / 2x14 | 1CN-3008 | 41 | 34 | 20 | 32 |
| -30 | M30x2 (22L) | -12 | 3 / 4x14 | 1CN-3012 | 41 | 34 | 20 | 32 |
| -30 | M30x2 (22L) | -16 | 1x11.5 | 1CN-3016 | 47 | 40 | 25 | 36 |
| -36 | M36x2 (28L) | -16 | 1x11.5 | 1CN-3616 | 47 | 40 | 25 | 41 |
| -36 | M36x2 (28L) | -20 | 1.1 / 4x11.5 | 1CN-3620 | 49 | 42 | 25 | 46 |
| -45 | M45x2 (35L) | -20 | 1.1 / 4x11.5 | 1CN-4520 | 51 | 14 | 25 | 46 |
| -52 | M52x2 (42L) | -24 | 1.1 / 2x11.5 | 1CN-5224 | 53 | 42 | 26 | 55 |
1CT/1DT - JENIS GIGITAN METRIK X BSPT PRIA LURUS
| Benang A | Benang B | Tidak ada bagian | L | L2 | F | H1 | ||
| Dash | DKK | Dash | PTSD | mm | mm | mm | mm | |
| -8 | 8x1.0 | -2 | 2001/8/28 | 1CT-0802LL | 22 | 18 | 10 | 12 |
| -10 | 10x1.0 | -2 | 2001/8/28 | 1CT-1002LL | 22 | 17 | 10 | 12 |
| -12 | 12x1.0 | -2 | 1 / 8-28 | 1CT-1202LL | 26 | 21 | 10 | 12 |
| -12 | M12x1.5 (06L) | -2 | 1 / 8x28 | 1CT-1202 | 28 | 21 | 10 | 12 |
| -12 | M12x1.5 (06L) | -4 | 1 / 4x19 | 1CT-1204 | 32 | 25 | 15 | 14 |
| -14 | M14x1.5 (08L) | -2 | 1 / 8x28 | 1CT-1402 | 27 | 20 | 10 | 17 |
| -14 | M14x1.5 (08L) | -4 | 1 / 4x19 | 1CT-1404 | 32 | 25 | 15 | 17 |
| -14 | M14x1.5 (08L) | -6 | 3 / 8x19 | 1CT-1406 | 34 | 27 | 15 | 19 |
| -16 | M16x1.5 (10L) | -2 | 1 / 8x28 | 1CT-1602 | 27 | 20 | 10 | 17 |
| -16 | M16x1.5 (10L) | -4 | 1 / 4x19 | 1CT-1604 | 33 | 26 | 15 | 17 |
| -16 | M16x1.5 (10L) | -6 | 3 / 8x19 | 1CT-1606 | 35 | 28 | 15 | 19 |
| -16 | M16x1.5 (10L) | -8 | 1 / 2x14 | 1CT-1608 | 39 | 32 | 19 | 22 |
| -18 | M18x1.5 (12L) | -4 | 1 / 4x19 | 1CT-1804 | 35 | 28 | 15 | 19 |
| -18 | M18x1.5 (12L) | -6 | 3 / 8x19 | 1CT-1806 | 35 | 28 | 15 | 19 |
| -18 | M18x1.5 (12L) | -8 | 1 / 2x14 | 1CT-1808 | 39 | 32 | 19 | 22 |
| -22 | M22x1.5 (15L) | -6 | 3 / 8x19 | 1CT-2206 | 35 | 28 | 15 | 24 |
| -22 | M22x1.5 (15L) | -8 | 1 / 2x14 | 1CT-2208 | 40 | 33 | 19 | 24 |
| -26 | M26x1.5 (18L) | -8 | 1 / 2x14 | 1CT-2608 | 41 | 33 | 19 | 27 |
| -26 | M26x1.5 (18L) | -12 | 3 / 4x14 | 1CT-2612 | 41 | 33 | 20 | 30 |
| -30 | M30x2 (22L) | -12 | 3 / 4x14 | 1CT-3012 | 43 | 35 | 20 | 32 |
| -30 | M30x2 (22L) | -16 | 1x11 | 1CT-3016 | 50 | 42 | 25 | 36 |
| -36 | M36x2 (28L) | -16 | 1x11 | 1CT-3616 | 52 | 45 | 26 | 38 |
| -36 | M36x2 (28L) | -20 | 1.1 / 4x11 | 1CT-3620 | 56 | 49 | 27 | 50 |
| -45 | M45x2 (35L) | -20 | 1.1 / 4x11 | 1CT-4520 | 58 | 51 | 27 | 50 |
| -52 | M52x2 (42L) | -24 | 1.1 / 2x11 | 1CT-5224 | 60 | 53 | 27 | 55 |
1CO/1DO - METRIC BITE TYPE X ORB MALE STRAIGHT
| Benang A | Benang B | Tidak ada bagian | L | L2 | F | H1 | ||
| Dash | DKK | Dash | Sebuah | mm | mm | mm | mm | |
| -12 | M12x1.5 (06L) | -7 | 7 / 16-20 | 1CO-1207 | 25 | 18 | 9 | 14 |
| -14 | M14x1.5 (08L) | -7 | 7 / 16x20 | 1CO-1407 | 26 | 19 | 9 | 17 |
| -14 | M14x1.5 (08L) | -9 | 9 / 16x18 | 1CO-1409 | 27 | 19 | 10 | 17 |
| -14 | M14x1.5 (08L) | -12 | 3 / 4x16 | 1CO-1412 | 28 | 10 | 11 | 24 |
| -16 | M16x1.5 (10L) | -7 | 7 / 16x20 | 1CO-1607 | 27 | 20 | 9 | 17 |
| -16 | M16x1.5 (10L) | -9 | 9 / 16x18 | 1CO-1609 | 27 | 19 | 10 | 17 |
| -16 | M16x1.5 (10L) | -12 | 3 / 4x16 | 1CO-1612 | 31 | 25 | 11 | 24 |
| -16 | M16x1.5 (10L) | -14 | 7 / 8-14 | 1CO-1614 | 31 | 25 | 13 | 27 |
| -18 | M18x1.5 (12L) | -9 | 9 / 16x18 | 1CO-1809 | 28 | 21 | 10 | 19 |
| -18 | M18x1.5 (12L) | -12 | 3 / 4x16 | 1CO-1812 | 31 | 24 | 11 | 24 |
| -18 | M18x1.5 (12L) | -14 | 7 / 8x14 | 1CO-1814 | 34 | 27 | 13 | 27 |
| -18 | M18x1.5 (12L) | -17 | 1.1 / 16-12 | 1CO-1817 | 36 | 29 | 15 | 32 |
| -22 | M22x1.5 (15L) | -9 | 9 / 16-18 | 1CO-2209 | 31 | 24 | 10 | 24 |
| -22 | M22x1.5 (15L) | -12 | 3 / 4x16 | 1CO-2212 | 32 | 25 | 11 | 24 |
| -22 | M22x1.5 (15L) | -14 | 7 / 8x14 | 1CO-2214 | 35 | 28 | 13 | 27 |
| -22 | M22x1.5 (15L) | -14 | 1.1 / 16x12 | 1CO-2217 | 37 | 30 | 15 | 32 |
| -26 | M26x1.5 (18L) | -12 | 3 / 4x16 | 1CO-2612 | 33 | 26 | 11 | 27 |
| -26 | M26x1.5 (18L) | -14 | 7 / 8x14 | 1CO-2614 | 35 | 27 | 13 | 27 |
| -26 | M26x1.5 (18L) | -17 | 1.1 / 16x12 | 1CO-2617 | 39 | 32 | 15 | 32 |
| -30 | M30x2 (22L) | -12 | 3 / 4-16 | 1CO-3012 | 33 | 25 | 11 | 32 |
| -30 | M30x2 (22L) | -14 | 7 / 8x14 | 1CO-3014 | 37 | 30 | 13 | 32 |
| -30 | M30x2 (22L) | -17 | 1.1 / 16x12 | 1CO-3017 | 39 | 32 | 15 | 32 |
| -30 | M30x2 (22L) | -21 | 1.5 / 16x12 | 1CO-3021 | 40 | 33 | 15 | 41 |
| -36 | M36x2 (28L) | -17 | 1.1 / 16x12 | 1CO-3617 | 40 | 33 | 15 | 41 |
| -36 | M36x2 (28L) | -21 | 1.5 / 16x12 | 1CO-3621 | 40 | 33 | 15 | 41 |
| -36 | M36x2 (28L) | -26 | 1.5 / 8-12 | 1CO-3626 | 41 | 31 | 16 | 50 |
| -45 | M45x2 (35L) | -21 | 1.5 / 16x12 | 1CO-4521 | 43 | 33 | 15 | 50 |
| -45 | M45x2 (35L) | -26 | 1.5 / 8x12 | 1CO-4526 | 43 | 33 | 15 | 50 |
| -52 | M52x2 (42L) | -26 | 1.5 / 8x12 | 1CO-5226 | 45 | 34 | 15 | 60 |
2C/2D - JENIS GIGITAN METRIK JANTAN KE WANITA LURUS
| A | B | Tidak ada bagian | L | L2 | H1 | H | ||
| Dash | DKK | Dash | DKOL | mm | mm | mm | mm | |
| -12 | M12x1.5 (08L) | -12 | M12x1.5 (08L) | 2C-12 | 43 | 36 | 12 | 14 |
| -14 | M14x1.5 (08L) | -14 | M14x1.5 (08L) | 2C-14 | 43 | 36 | 14 | 17 |
| -16 | M16x1.5 (10L) | -16 | M16x1.5 (10L) | 2C-16 | 43 | 36 | 17 | 19 |
| -18 | M16x1.5 (12L) | -18 | M16x1.5 (12L) | 2C-18 | 43 | 36 | 19 | 22 |
| -22 | M22x1.5 (15L) | -22 | M22x1.5 (15L) | 2C-22 | 43 | 36 | 24 | 27 |
| -26 | M26x1.5 (18L) | -26 | M26x1.5 (18L) | 2C-26 | 44 | 36 | 27 | 32 |
| -30 | M30x2 (22L) | -30 | M30x2 (22L) | 2C-30 | 48 | 40 | 32 | 36 |
| -36 | M36x2 (28L) | -36 | M36x2 (28L) | 2C-36 | 48 | 40 | 41 | 41 |
| -45 | M45x2 (35L) | -45 | M45x2 (35L) | 2C-45 | 61 | 50 | 46 | 50 |
| -12 | M12x1.5 (06L) | -14 | M14x1.5 (08L) | 2C-1214 | 31 | 24 | 17 | 14 |
| -12 | M12x1.5 (06L) | -16 | M16x1.5 (10L) | 2C-1216 | 32 | 25 | 19 | 19 |
| -12 | M12x1.5 (06L) | -18 | M18x1.5 (12L) | 2C-1218 | 32 | 25 | 0 | 22 |
| -12 | M12x1.5 (06L) | -26 | M26x1.5 (18L) | 2C-1226 | 36 | 28 | 0 | 32 |
| -14 | M14x1.5 (08L) | -12 | M12x1.5 (06L) | 2C-1412 | 31 | 24 | 12 | 17 |
| -14 | M14x1.5 (08L) | -16 | M16x1.5 (10L) | 2C-1416 | 32 | 0 | 0 | 19 |
| -14 | M14x1.5 (08L) | -18 | M18x1.5 (12L) | 2C-1418 | 32 | 0 | 0 | 22 |
| -14 | M14x1.5 (08L) | -22 | M22x1.5 (15L) | 2C-1422 | 36 | 0 | 0 | 27 |
| -14 | M14x1.5 (08L) | -26 | M26x1.5 (18L) | 2C-1426 | 36 | 0 | 0 | 32 |
| -16 | M16x1.5 (10L) | -12 | M12x1.5 (06L) | 2C-1612 | 32 | 25 | 14 | 19 |
| -16 | M16x1.5 (10L) | -14 | M14x1.5 (08L) | 2C-1614 | 32 | 25 | 14 | 19 |
| -16 | M16x1.5 (10L) | -18 | M18x1.5 (12L) | 2C-1618 | 33 | 0 | 0 | 22 |
| -16 | M16x1.5 (10L) | -22 | M22x1.5 (15L) | 2C-1622 | 37 | 0 | 0 | 27 |
| -16 | M16x1.5 (10L) | -26 | M26x1.5 (18L) | 2C-1626 | 37 | 0 | 0 | 32 |
| -16 | M16x1.5 (10L) | -30 | M30x2 (22L) | 2C-1630 | 40 | 0 | 0 | 36 |
| -18 | M18x1.5 (12L) | -22 | M22x1.5 (15L) | 2C-1822 | 0 | 0 | 0 | 27 |
| -18 | M18x1.5 (12L) | -26 | M26x1.5 (18L) | 2C-1826 | 0 | 0 | 0 | 32 |
| -18 | M18x1.5 (12L) | -30 | M30x2 (22L) | 2C-1830 | 0 | 0 | 0 | 36 |
| -18 | M18x1.5 (12L) | -36 | M36x2 (28L) | 2C-1836 | 0 | 0 | 0 | 41 |
| -22 | M22x1.5 (15L) | -16 | M16x1.5 (10L) | 2C-2216 | 37 | 30 | 19 | 27 |
| -22 | M22x1.5 (15L) | -26 | M26x1.5 (18L) | 2C-2226 | 0 | 0 | 0 | 32 |
| -22 | M22x1.5 (15L) | -30 | M30x2 (22L) | 2C-2230 | 0 | 0 | 0 | 36 |
| -22 | M22x1.5 (15L) | -36 | M36x2 (28L) | 2C-2236 | 0 | 0 | 0 | 41 |
| -22 | M22x1.5 (15L) | -45 | M45x2 (35L) | 2C-2245 | 0 | 0 | 0 | 50 |
| -26 | M26x1.5 (18L) | -30 | M30x2 (22L) | 2C-2630 | 0 | 0 | 0 | 36 |
| -26 | M26x1.5 (18L) | -36 | M36x2 (28L) | 2C-2636 | 0 | 0 | 0 | 41 |
| -26 | M26x1.5 (18L) | -45 | M45x2 (35L) | 2C-2645 | 0 | 0 | 0 | 50 |
| -26 | M26x1.5 (18L) | -52 | M52x2 (42L) | 2C-2652 | 0 | 0 | 0 | 60 |
| -30 | M30x2 (22L) | -36 | M36x2 (28L) | 2C-3036 | 0 | 0 | 0 | 41 |
| -30 | M30x2 (22L) | -45 | M45x2 (35L) | 2C-3045 | 0 | 0 | 0 | 50 |
| -30 | M30x2 (22L) | -52 | M52x2 (42L) | 2C-3052 | 0 | 0 | 0 | 60 |
| -36 | M36x2 (28L) | -45 | M45x2 (35L) | 2C-3645 | 0 | 0 | 0 | 50 |
| -36 | M36x2 (28L) | -52 | M52x2 (42L) | 2C-3652 | 0 | 0 | 0 | 60 |
| -45 | M45x2 (35L) | -52 | M52x2 (42L) | 2C-4552 | 0 | 0 | 0 | 60 |
| -52 | M52x2 (42L) | -45 | M45x2 (35L) | 2C-5245 | 54 | 43 | 50 | 50 |
3C/3D - WANITA KE WANITA METRIK JENIS BITYE LURUS
| Benang A | Benang B | Tidak ada bagian | L | H | H1 | ||
| Dash | DKOL | Dash | DKOL | mm | mm | mm | |
| -12 | M12x1.5 (06L) | -12 | M12x1.5 (06L) | 3C-12 | 33 | 14 | 14 |
| -14 | M14x1.5 (08L) | -14 | M14x1.5 (08L) | 3C-14 | 33 | 17 | 17 |
| -16 | M16x1.5 (10L) | -16 | M16x1.5 (10L) | 3C-16 | 34 | 19 | 19 |
| -16 | M16x1.5 (10L) | -14 | M14x1.5 (08L) | 3C-1614 | 34 | 19 | 17 |
| -18 | M18x1.5 (12L) | -18 | M18x1.5 (12L) | 3C-18 | 34 | 22 | 22 |
| -18 | M18x1.5 (12L) | -14 | M14x1.5 (08L) | 3C-1814 | 34 | 22 | 17 |
| -22 | M22x1.5 (15L) | -22 | M22x1.5 (15L) | 3C-22 | 39 | 27 | 27 |
| -26 | M26x1.5 (18L) | -22 | M22x1.5 (15L) | 3C-2622 | 40 | 32 | 27 |
| -26 | M26x1.5 (18L) | -26 | M26x1.5 (18L) | 3C-26 | 38 | 32 | 32 |
| -30 | M30x2 (22L) | -30 | M30x2 (22L) | 3C-30 | 44 | 36 | 36 |
| -36 | M36x2 (28L) | -36 | M36x2 (28L) | 3C-36 | 48 | 41 | 41 |
| -45 | M45x2 (35L) | -45 | M45x2 (35L) | 3C-45 | 52 | 50 | 50 |
| -52 | M52x2 (42L) | -52 | M52x2 (42L) | 3C-52 | 57 | 60 | 60 |
1C9/1D9 - JENIS GIGITAN METRIK JANTAN KE JANTAN 90 SIKU
| Benang A | Benang B | Tidak ada bagian | L1 | L2 | S1 | ||
| Dash | Metrik DKL | Dash | Metrik DKL | mm | mm | mm | |
| -08LL | M08x1.0 (04LL) | -08LL | M08x1.0 (04LL) | 1C9-08LL | 15 | 11 | 9 |
| -10LL | M10x1.0 (06LL) | -10LL | M10x1.0 (06LL) | 1C9-10LL | 15 | 10 | 9 |
| -12LL | M12x1.0 (08LL) | -12LL | M12x1.0 (08LL) | 1C9-12LL | 17 | 12 | 12 |
| -12 | M12x1.5 (06L) | -12 | M12x1.5 (06L) | 1C9-12 | 19 | 12 | 12 |
| -14 | M14x1.5 (08L) | -14 | M14x1.5 (08L) | 1C9-14 | 21 | 14 | 12 |
| -16 | M16x1.5 (10L) | -16 | M16x1.5 (10L) | 1C9-16 | 22 | 15 | 14 |
| -18 | M18x1.5 (12L) | -18 | M18x1.5 (12L) | 1C9-18 | 24 | 17 | 17 |
| -22 | M22x1.5 (15L) | -22 | M22x1.5 (15L) | 1C9-22 | 28 | 21 | 19 |
| -26 | M26x1.5 (18L) | -26 | M26x1.5 (18L) | 1C9-26 | 31 | 24 | 24 |
| -30 | M30x2 (22L) | -30 | M30x2 (22L) | 1C9-30 | 35 | 28 | 27 |
| -36 | M36x2 (28L) | -36 | M36x2 (28L) | 1C9-36 | 38 | 31 | 36 |
| -45 | M45x2 (35L) | -45 | M45x2 (35L) | 1C9-45 | 45 | 35 | 41 |
| -52 | M52X2 (42L) | -52 | M52X2 (42L) | 1C9-52 | 51 | 40 | 50 |
2C9/2D9 - JENIS GIGITAN METRIK JANTAN KE WANITA 90 SIKU
| A | B | Tidak ada bagian | L1 | L2 | L3 | S1 | ||
| Dash | DKK | Dash | DKOL | mm | mm | mm | mm | |
| -12 | M12x1.5 (06L) | -12 | M12x1.5 (06L) | 2C9-12 | 19 | 12 | 26 | 12 |
| -14 | M14x1.5 (08L) | -14 | M14x1.5 (08L) | 2C9-14 | 21 | 14 | 28 | 12 |
| -16 | M16x1.5 (10L) | -16 | M16x1.5 (10L) | 2C9-16 | 22 | 15 | 29 | 14 |
| -18 | M18x1.5 (12L) | -18 | M18x1.5 (12L) | 2C9-18 | 24 | 17 | 30 | 17 |
| -22 | M22x1.5 (15L) | -22 | M22x1.5 (15L) | 2C9-22 | 28 | 21 | 33 | 19 |
| -26 | M26x1.5 (18L) | -26 | M26x1.5 (18L) | 2C9-26 | 31 | 24 | 36 | 24 |
| -30 | M30x2 (22L) | -30 | M30x2 (22L) | 2C9-30 | 35 | 28 | 39 | 27 |
| -36 | M36x2 (28L) | -36 | M36x2 (28L) | 2C9-36 | 38 | 31 | 42 | 36 |
| -45 | M45x2 (35L) | -45 | M45x2 (35L) | 2C9-45 | 45 | 35 | 51 | 41 |
| -52 | M52x2 (42L) | -52 | M52x2 (42L) | 2C9-52 | 51 | 40 | 60 | 50 |
AC/AD - KAOS PRIA METRIC BITE TYPE
| A | B | C | Tidak ada bagian | E | F | G | S1 | |||
| Dash | DKK | Dash | DKK | Dash | DKK | mm | mm | mm | mm | |
| -12 | M12x1.5(06L) | -12 | M12x1.5(06L) | -12 | M12x1.5(06L) | AC-12 | 19 | 19 | 19 | 12 |
| -14 | M14x1.5(08L) | -14 | M14x1.5(08L) | -14 | M14x1.5(08L) | AC-14 | 21 | 21 | 21 | 12 |
| -16 | M16x1.5(10L) | -16 | M16x1.5(10L) | -16 | M16x1.5(10L) | AC-16 | 22 | 22 | 22 | 14 |
| -18 | M18x1.5(12L) | -18 | M18x1.5(12L) | -18 | M18x1.5(12L) | AC-18 | 24 | 24 | 24 | 17 |
| -22 | M22x1.5(15L) | -22 | M22x1.5(15L) | -22 | M22x1.5(15L) | AC-22 | 28 | 28 | 28 | 19 |
| -26 | M26x1.5(18L) | -26 | M26x1.5(18L) | -26 | M26x1.5(18L) | AC-26 | 31 | 31 | 31 | 24 |
| -30 | M30x2(22L) | -30 | M30x2(22L) | -30 | M30x2(22L) | AC-30 | 35 | 35 | 35 | 27 |
| -36 | M36x2(28L) | -36 | M36x2(28L) | -36 | M36x2(28L) | AC-36 | 38 | 38 | 38 | 36 |
| -45 | M45x2(35L) | -45 | M45x2(35L) | -45 | M45x2(35L) | AC-45 | 45 | 45 | 45 | 41 |
| -52 | M52x2(42L) | -52 | M52x2(42L) | -52 | M52x2(42L) | AC-52 | 51 | 51 | 51 | 50 |
BC/BD - KAOS CABANG JENIS GIGITAN METRIK PRIA KE WANITA
| A | B | C | Tidak ada bagian | E | F | G | S1 | H | |||
| Dash | DKK | Dash | DKK | Dash | DKOL | mm | mm | mm | mm | mm | |
| -12 | M12x1.5(06L) | -12 | M12x1.5(06L) | -12 | M12x1.5(06L) | BC-12 | 19 | 19 | 26 | 12 | 14 |
| -14 | M14x1.5(08L) | -14 | M14x1.5(08L) | -14 | M14x1.5(08L) | BC-14 | 21 | 21 | 28 | 12 | 17 |
| -16 | M16x1.5(10L) | -16 | M16x1.5(10L) | -16 | M16x1.5(10L) | BC-16 | 22 | 22 | 29 | 14 | 19 |
| -18 | M18x1.5(12L) | -18 | M18x1.5(12L) | -18 | M18x1.5(12L) | BC-18 | 24 | 24 | 30 | 17 | 22 |
| -22 | M22x1.5(15L) | -22 | M22x1.5(15L) | -22 | M22x1.5(15L) | BC-22 | 28 | 28 | 33 | 19 | 27 |
| -26 | M26x1.5(18L) | -26 | M26x1.5(18L) | -26 | M26x1.5(18L) | BC-26 | 31 | 31 | 36 | 24 | 32 |
| -30 | M30x2(22L) | -30 | M30x2(22L) | -30 | M30x2(22L) | BC-30 | 35 | 35 | 39 | 27 | 36 |
| -36 | M36x2(28L) | -36 | M36x2(28L) | -36 | M36x2(28L) | BC-36 | 38 | 38 | 42 | 36 | 41 |
| -45 | M45x2(35L) | -45 | M45x2(35L) | -45 | M45x2(35L) | BC-45 | 45 | 45 | 51 | 41 | 50 |
| -52 | M52x2(42L) | -52 | M52x2(42L) | -52 | M52x2(42L) | BC-52 | 51 | 51 | 56 | 50 | 60 |
CC/CD - KAOS LARI METRIK JENIS GIGITAN PRIA KE WANITA
| A | B | C | Tidak ada bagian | E | F | G | S1 | H | |||
| Dash | DKK | Dash | DKK | Dash | DKK | mm | mm | mm | mm | mm | |
| -12 | M12x1.5(06L) | -12 | M12x1.5(06L) | -12 | M12x1.5(06L) | CC-12 | 19 | 26 | 19 | 12 | 14 |
| -14 | M14x1.5(08L) | -14 | M14x1.5(08L) | -14 | M14x1.5(08l) | CC-14 | 21 | 28 | 21 | 12 | 17 |
| -16 | M16x1.5(10L) | -16 | M16x1.5(10L) | -16 | M16x1.5(10L) | CC-16 | 22 | 29 | 22 | 14 | 19 |
| -18 | M18x1.5(12L) | -18 | M18x1.5(12L) | -18 | M18x1.5(12L) | CC-18 | 24 | 30 | 24 | 17 | 22 |
| -22 | M22x1.5(15L) | -22 | M22x1.5(15L) | -22 | M22x1.5(15L) | CC-22 | 28 | 33 | 28 | 19 | 27 |
| -26 | M26x1.5(18L) | -26 | M26x1.5(18L) | -26 | M26x1.5(18L) | CC-26 | 31 | 36 | 31 | 24 | 32 |
| -30 | M30x2(22L) | -30 | M30x2(22L) | -30 | M30x2(22L) | CC-30 | 35 | 39 | 35 | 27 | 36 |
| -36 | M36x2(28L) | -36 | M36x2(28L) | -36 | M36x2(28L) | CC-36 | 38 | 42 | 38 | 36 | 41 |
| -45 | M45x2(35L) | -45 | M45x2(35L) | -45 | M45x2(35L) | CC-45 | 45 | 51 | 45 | 41 | 50 |
| -52 | M52x2(42L) | -52 | M52x2(42L) | -52 | M52x2(42L) | CC-52 | 51 | 56 | 51 | 50 | 60 |
Catatan: Jika Anda tertarik untuk memesan adaptor dalam set lengkap dengan cincin pemotong dan mur, Anda perlu menambahkan akhiran "RN" setelah nomor komponen kami, seperti "1C-RN/1D-RN".
Detail
1. Selesai: pelapisan seng standar (Cr3, Perak), pelapisan nikel, dan pelapisan seng nikel (dapat lulus persyaratan uji semprot garam 700-1000 jam).
2. Ukuran yang tersedia: M12x1.5 hingga M52x2.
3. Tekanan: dari 5000 PSI hingga 10,000 PSI, tekanan tinggi tersedia.
4. Sampel: kami dapat menyediakan 2-3 buah sampel gratis untuk pengujian sebelum pesanan percobaan.
5. MOQ: Kami mempunyai stok sebagian besar ukuran, jadi tidak ada satu pun; kalau tidak, ada jumlah pesanan minimal 500 buah.
6. Bahan: kuningan, baja tahan karat (304 atau 316L), baja karbon (baja #45).
7. Standar: standar DIN/EATON atau sesuai gambar dan contoh (OEM).
8. Pengiriman: 30-45 hari untuk pesanan produksi dan 7-15 hari kerja untuk pesanan stok.
Menyediakan Carbon Steel Straight Elbow Tee Metric Bite Type Hydraulic Tube Fittings ke kota-kota di
